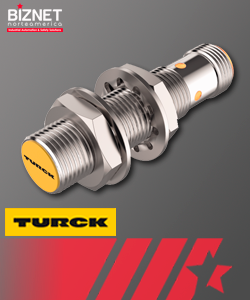

INDUCTIVE SENSORS

Product BI6U-M12-IOL6X2-H1141

Inductive Sensor

IO-Link Communication and Configuration

Ident. no.: 1644873

• M12 × 1 threaded barrel

• Chrome-plated brass

• Factor 1 for all metals

• Protection class IP68

• Resistant to magnetic fields

• Large switching distance

• DC 4-wire, 10…30 VDC

• M12 x 1 connector

• Configuration and communication via IO-Link v1.1 or via standard I/O

• Electrical outputs independently configurable

• Switching distance can be parametrized per output and hysteresis

• Identification via 32-byte memory

• Temperature monitoring with adjustable limits

• Various timer and pulse monitoring functions.

CAPACITIVE SENSOR

Product BC10-M30K-VP4X-H1141

Capacitive Sensor

Ident. no.: 2503035

• M30 × 1.5 threaded barrel

• Chrome-plated brass

• Fine adjustment via potentiometer

• DC 4-wire, 10…65 VDC

• Complementary contact, PNP output

• M12 × 1 connector

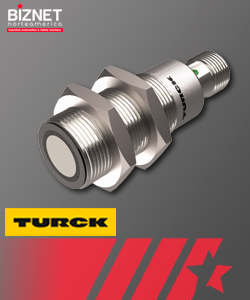

ULTRASONIC SENSOR

Product RU150D-M18M-UPN8X2-H1141

Ultrasonic Sensor
Diffuse Mode Sensor

Ident. no.: 100039010

• Smooth sonic transducer face

• M18 cylindrical design, potted

• Connection via M12 × 1 male connector

• Measuring range adjustable via teach-in

• Temperature compensation

• Blind zone: 15 cm

• Range: 150 cm

• Resolution: 1 mm

• Adjustable switching hysteresis

• Narrow sonic cone

• Switching output, push-pull (PNP/NPN)

• NO/NC programmable

• IO-Link

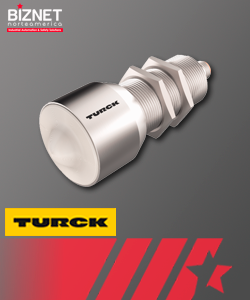

RADAR SENSOR

Product DR15S-M30E-2UPN8X2-H1141

Radar Sensor
Distance/Object Detection

Ident. no.: 100030149

• Blind zone: 35 cm

• Range: 15 m

• Resolution: 1 mm

• Cone angle of the radar beam: Standard ±7.5°

• Approved acc. to ETSI 305550-2

• Approved acc. to FCC/CFR 47 Part 15.

• M12 × 1 male connector, 4-pin

• Operating voltage 18…33 VDC

• Operating voltage 10…33 VDC (in SIO mode)

• Switching output switchable between PNP/NPN

• IO-Link

• M30 cylindrical design, stainless steel

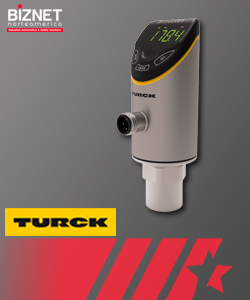

PRESSURE SENSOR

Product PS310-1V-01-2UPN8-H1141/X

Pressure Sensor
Relative Pressure: -1…1 Bar

Ident. no.: 100004758

• 4-digit, 2-color (red/green), 12-segment display, rotatable by 180°

• Housing is rotatable after mounting the process connection

• Ceramic measuring cell

• 18…33 VDC

• NO/NC contact, PNP/NPN output, IO-Link

• Process connection G1/4" female thread

• Plug-in device, M12 × 1

FLOW SENSOR

Product FS101-300L-61-2UPN8-H1141

Flow Sensor

Ident. no.: 100049513

• Screw-in adapter with G1/2″ process connection, male thread, included in delivery.

• Electronics housing material/media-contacting 1.4404 (316L)/1.4571 (316Ti)

• Immersion depth 52.9 mm

• 4-digit 12-segment display, rotatable by 180°

• Flow monitoring for liquid media

• Protection classes IP66, IP67 and IP69K

• Adjustment of flow speed via teach function

• 17…33 VDC
