CATEGORY:

SENSORS

PILZ Products

INTERRUPTORES DE SEGURIDAD CON BLOQUEO

SAFETY SWITCHES WITH GUARD LOCKING

Pilz safety switches with guard locking offer the right solution for both process and personnel protection-for safe, productive working.

PSEN sg2c-5LPLLE switch

Product ID: 570813

Safety gate system 2. generation, safe interlock with safe guard locking, in accordance with EN 609475-3, for applications up to PL e. Consisting of 5 elements: 1. Illuminated pushbutton for activating the safety gate, 2. Pushbutton for access and release of the safety gate, 3. Illuminated pushbutton, 4. Illuminated pushbutton, 5. Emergency stop pushbutton. Scope of supply: Sensing device with pushbuttons (spare).

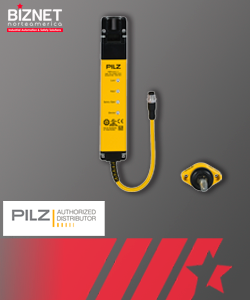

PSEN ml b 1.1 unit

Product ID: 570400

Safety guard locking device PSENmlock, coded, with safety switch and actuator, with guard locking, with power reset, 8-pin M12 male connector, 0.23 m cable, single connection.

BARRERAS FOTOELÉCTRICAS DE SEGURIDAD

SAFETY LIGHT CURTAIN

With our safety light curtains PSENopt and PSENopt II, you can protect your staff and capital goods -safely, efficiently and economically.

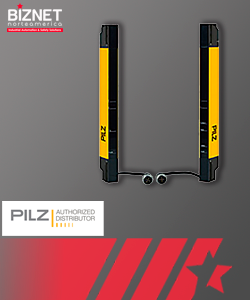

PSEN op4F-SL-14-075/1

Product ID: 631151

Safety light guard, Type 4, PL e, finger protection (resolution 14 mm), protected field height 750 mm.
Features: Cascading without dead zone, slimline design.
Supply voltage 24 V, connector M12, transmitter: 5- pin, receiver 5-pin.
Connection cable is not supplied with the device.

ESCÁNERES LÁSER DE SEGURIDAD

SAFETY LASER SCANNER

Monitor two-dimensional areas with the safety laser scanner PSENscan: Ideal for stationary and mobile area guarding and access monitoring.

PSEN sc L 3.0 08-12

Producto ID: 6D000012

Light model, 30 mm/40 mm/50 mm/70 mm/150 mm detection capability, muting, override, EDM, restart application in accordance with EN ISO61496-3, vertical applications, reference markers, measurement data output (UDP), rapid exchange by exchangeable memory block; 3.0 m safety zone; max. 2 safety zones parallel active, max. 2 warning zones parallel active, max. 10 configurable zone sets.
